Key attributes
Industry-specific attributes
Type
Adapter
Application
Electronics Industrial
Gender
MALE/FEMALE
Other attributes
Place of Origin
Guangdong, China
Model Number
XT30 XT60 XT90 or orthers
Housing Material
PA
Metal head material
copper plated
Gauge
10-18 AWG or others
Packaging and delivery
Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
0.090 kg
Show more
Products Description

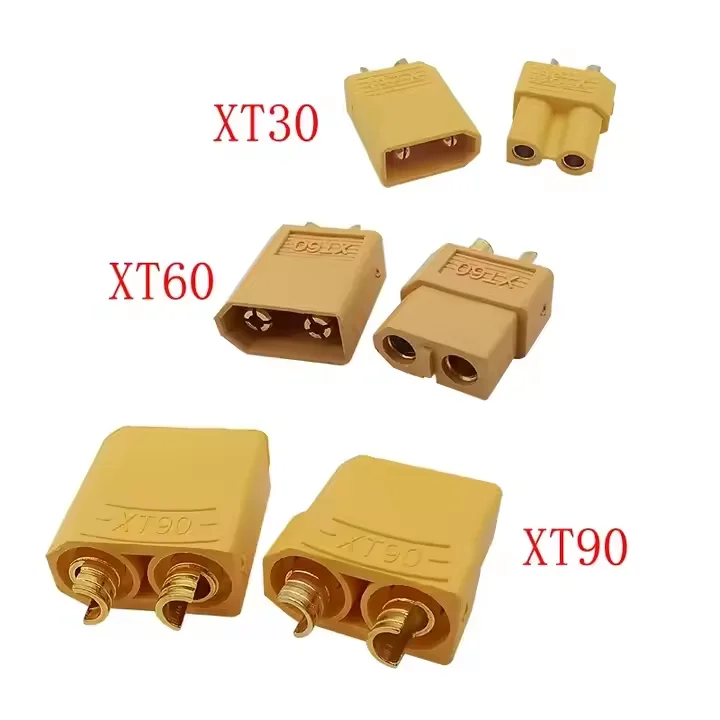

XT30 XT60 XT90 Male Female Banana Bullet Plug For RC Lipo Battery / ESC / Motor XT30 XT60 XT90 Male Female Bullet Connector
NOTE: Various Options to SELECT, welcome to inqure
Spec
●Type: XT30
●Rated voltage: DC500V●Rated current: 15A●Instantaneous current: 30A
●AInsulation shell material: PA
●Metal head material: copper plated
●Flame retardant rating: UL94 VO
●Recommended wire gauge: 18AWG
●Contact resistance: 0.70 milliohm
●Number of uses: 1000 times
●Working environment temperature:-20°C~120°C
●Safety certification: UL/CE
Spec
●Type: XT60
●Rated voltage: DC500V
●Rated current: 30A
●Instantaneous current: 60A
●Insulation shell material: PA
●Insulation shell material: PA
●Metal head material: copper plated
●Flame retardant rating: UL94 VO
●Recommended wire gauge: 12AWG
●Contact resistance: 0.55 milliohm
●Number of uses: 1000 times
●Working environment temperature:-20°C~120°C
●Safety certification: UL/CE
●Flame retardant rating: UL94 VO
●Recommended wire gauge: 12AWG
●Contact resistance: 0.55 milliohm
●Number of uses: 1000 times
●Working environment temperature:-20°C~120°C
●Safety certification: UL/CE
Spec
●Type: XT90
●Rated voltage: DC500V
●Rated current: 40A
●Instantaneous current: 90A
●Insulation shell material: PA
●Insulation shell material: PA
●Metal head material: copper plated
●Flame retardant rating: UL94 VO
●Recommended wire gauge: 10AWG
●Contact resistance: 0.3 milliohm
●Number of uses: 1000 times
●Working environment temperature:-20°C~120°C
●Safety certification: UL/CE
●Flame retardant rating: UL94 VO
●Recommended wire gauge: 10AWG
●Contact resistance: 0.3 milliohm
●Number of uses: 1000 times
●Working environment temperature:-20°C~120°C
●Safety certification: UL/CE
Recommend Products
Customization
Cusomization Available | ||
Wire Type | UL Wire, VDE Cable, Automotive Wires, Dran Chain Cable, Medical Cable,ect. | |
Wire Size | 2AWG-32AWG,0.01mm2-50mm2 are available | |
Wire cores | 1 Core~50 cores are available | |
Conductors | Bare Copper, Tinned copper, Silver Plated, Gold plated wire | |
Rate Temperature | 80℃,105℃,125℃,180℃,220℃,300℃(176°F-572°F) | |
Certification | UL,VDE, CE 3C or TUV Customize Special cables | |
Protection | Waterproof, Low Smoke Halogen-Free, Anti-UV cable, Acid and alkali-resistant cable are available. | |
Industries | Autmobiles, Electronics, Machines, Lighting, New energy | |
