Key attributes
Industry-specific attributes
Application
Household appliance
Conductor Material
Bare or tinned copper,solid or stranded flexibfe
Conductor Type
Stranded
Insulation Material
PVC
Rated voltage
30V
Other attributes
Place of Origin
Guangdong, China
Brand Name
XIN YING
Model Number
UL2725
Type
PVC multi-core braided Wire
Temperature
-20℃ ~ +80℃
Gauge
Customized
Certification
UL E332522
Number of cores
2 – 20 cores of Flat ribbon wire
Cutsomizable Insulation Material
PVC, SRPVC, PE, XLPE, FEP, ETFE, PFA
Packaging and delivery
Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
5.000 kg
Show more
Products Description

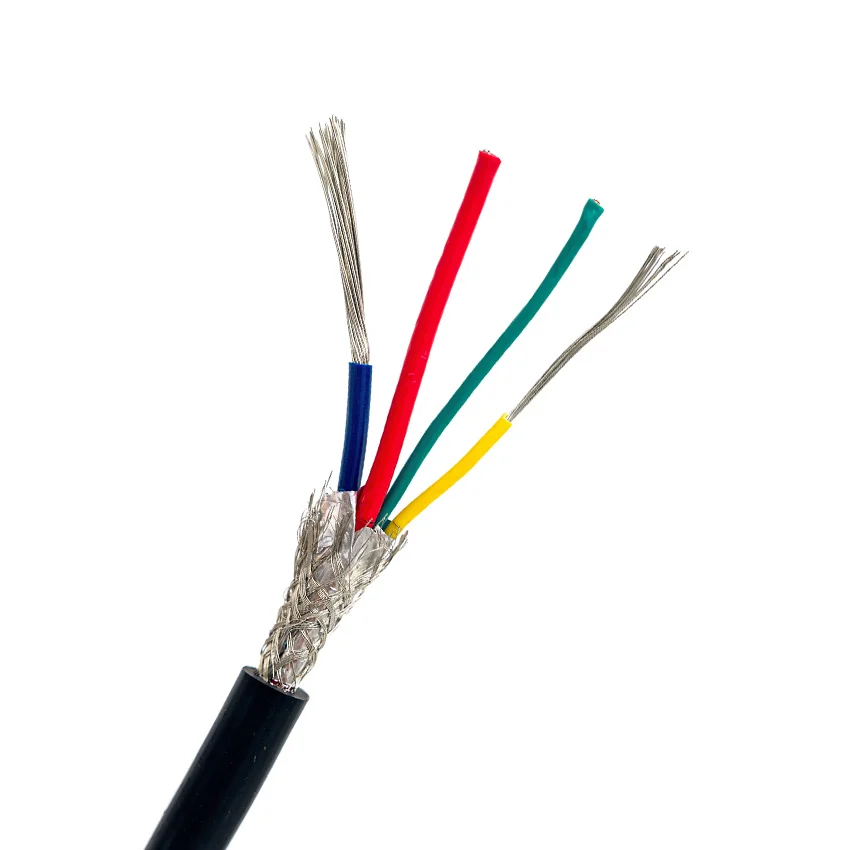

UL2725 PVC multi-core braided wire | 28~20 AWG PVC Insulated Cable for Household appliance,etc.
?Rating Voltage: 30V
?Temperature range: -20'C to +80°C
?Conductor: Bare or tinned copper,solid or stranded flexibfe
?insulation:PVC,SRPVC,PE,XLPE,FEP,ETFE,PFA
?Structure:Conductors stranded,shielded braid
?Jacket:PVC
?0.D.Allowance:±0.10mm
?Certification：UL758 & UL1581
?Characteristic:Flexible, convinience to assemble, cold resistance, stable performance
?Application：Household appliance, lllumination&Lighting& Headlampelectric machines, temperature sensor,
MetallurgyChemical series, Motor cars&Ships Electrical installation, Computer etc
NOTE: Various Options to customize, welcome to inqure
Product Feature:
?Temperature range: -20'C to +80°C
?Conductor: Bare or tinned copper,solid or stranded flexibfe
?insulation:PVC,SRPVC,PE,XLPE,FEP,ETFE,PFA
?Structure:Conductors stranded,shielded braid
?Jacket:PVC
?0.D.Allowance:±0.10mm
?Certification：UL758 & UL1581
?Characteristic:Flexible, convinience to assemble, cold resistance, stable performance
?Application：Household appliance, lllumination&Lighting& Headlampelectric machines, temperature sensor,
MetallurgyChemical series, Motor cars&Ships Electrical installation, Computer etc
Recommend Products
Customization
Cusomization Available | ||
Wire Type | UL Wire, VDE Cable, Automotive Wires, Dran Chain Cable, Medical Cable,ect. | |
Wire Size | 2AWG-32AWG,0.01mm2-50mm2 are available | |
Wire cores | 1 Core~50 cores are available | |
Conductors | Bare Copper, Tinned copper, Silver Plated, Gold plated wire | |
Rate Temperature | 80℃,105℃,125℃,180℃,220℃,300℃(176°F-572°F) | |
Certification | UL,VDE, CE 3C or TUV Customize Special cables | |
Protection | Waterproof, Low Smoke Halogen-Free, Anti-UV cable, Acid and alkali-resistant cable are available. | |
Industries | Autmobiles, Electronics, Machines, Lighting, New energy | |
