Key attributes
Industry-specific attributes
Application
electronic equipment
Conductor Material
Solid or stranded,tinned or bare copper conductor
Conductor Type
Stranded
Insulation Material
PVC
Rated voltage
300V
Other attributes
Place of Origin
Guangdong, China
Brand Name
XIN YING
Model Number
UL2468 PVC Flat ribbon wire
Type
PVC Flat ribbon wire
Temperature
-20℃ ~ +80℃
Gauge
Customized
Length
Custom Length
Certification
UL758 / UL1581
Customizable pin number
2-16P
Number of cores
2-10
Packaging and delivery
Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
0.500 kg
Show more
Products Description

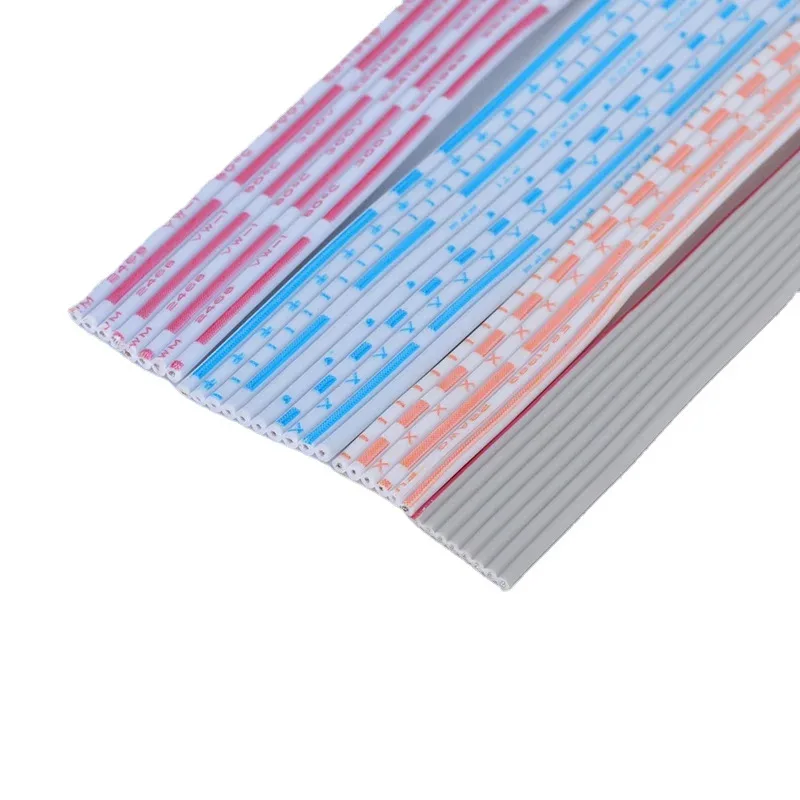

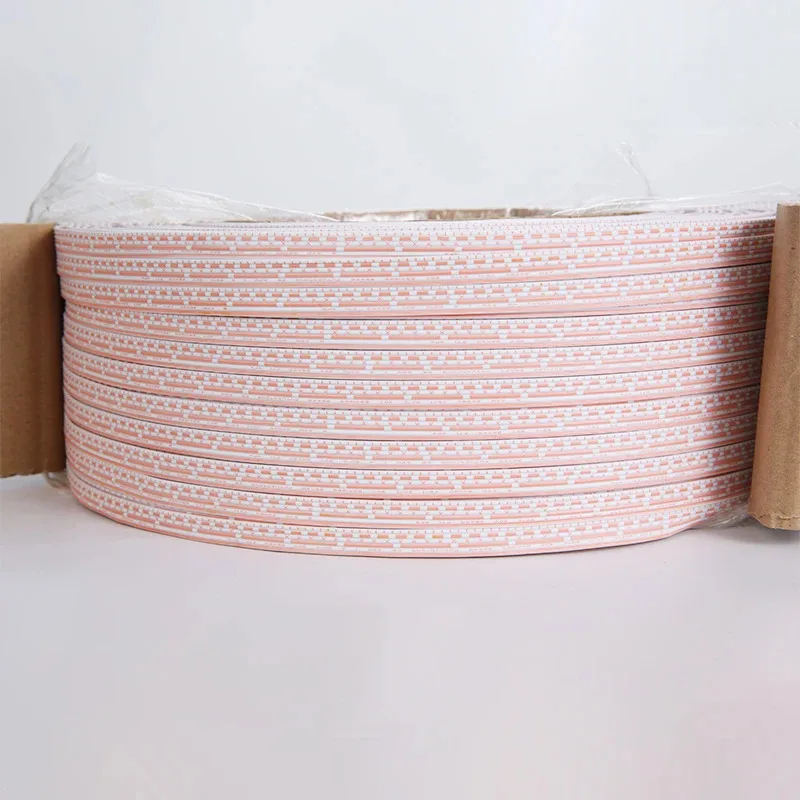

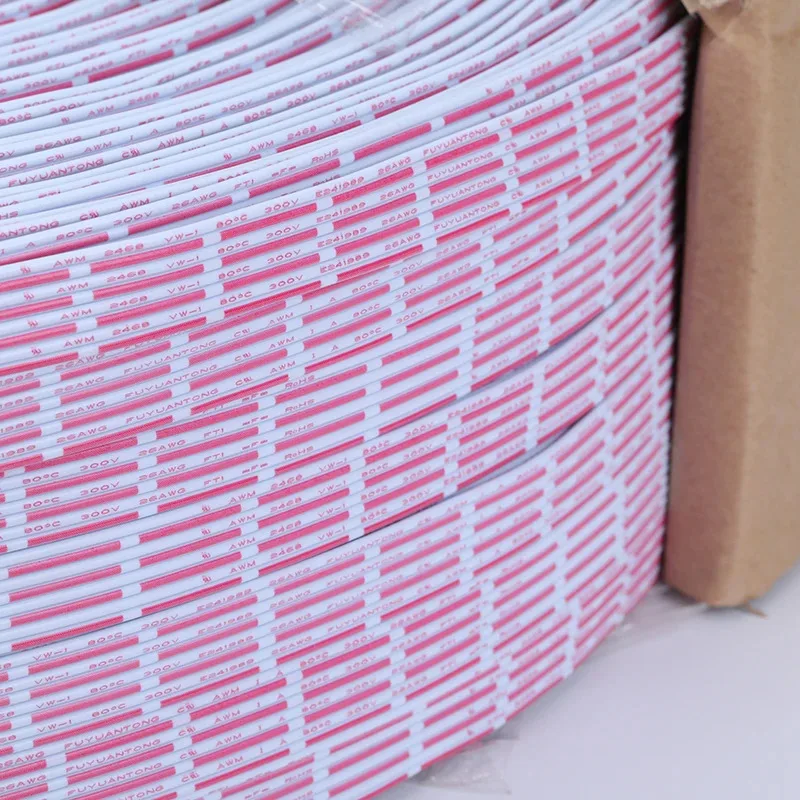

UL2468 PVC Flat ribbon wire 32~16 AWG PVC Insulated Copper Cable for electronic equipment,etc.
?Rating Voltage: 300V
?Temperature range: -20'C ~ +80°C

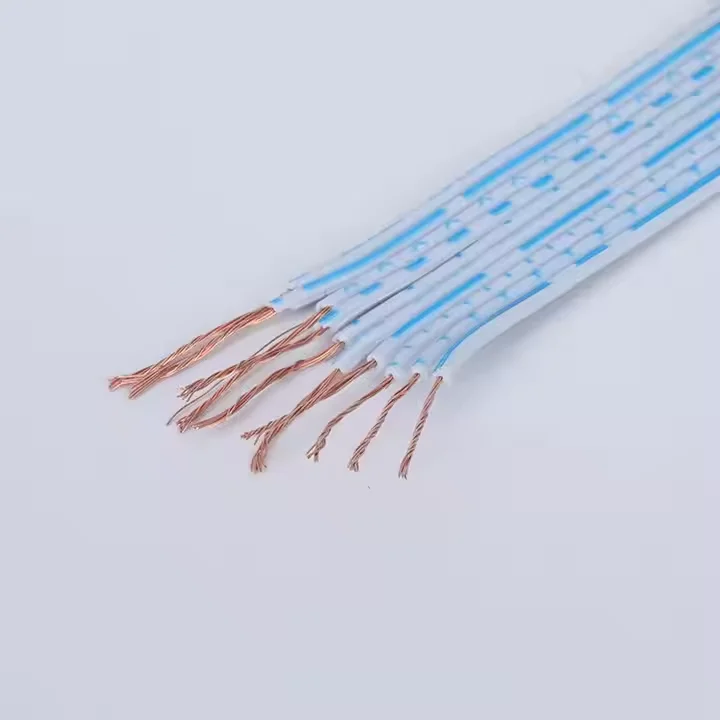

?Conductor: 32 to 16AWG bare ortinned copper, solid or stranded flexible copper
?Number of Cores: 2 ~10
?Cinsulation:PVC
?0.D.Allowance: ±0.10mm
?Characteristic:
Flexible,convinience to assemble,cold resistance,stableperformance
?Certification：UL758 / UL1581
?Application：
Household appliance, lllumination&Lighting&Headlamp,electric machines,temperature sensor, Military series, Metallurgy Chemical series, Motor cars&Ships Electrical installation, Computer etc.
? Avaliable pin number：2-16P
NOTE: Various Options to customize, welcome to inqure
Product Feature:
?Temperature range: -20'C ~ +80°C
?Conductor: 32 to 16AWG bare ortinned copper, solid or stranded flexible copper
?Number of Cores: 2 ~10
?Cinsulation:PVC
?0.D.Allowance: ±0.10mm
?Characteristic:
Flexible,convinience to assemble,cold resistance,stableperformance
?Certification：UL758 / UL1581
?Application：
Household appliance, lllumination&Lighting&Headlamp,electric machines,temperature sensor, Military series, Metallurgy Chemical series, Motor cars&Ships Electrical installation, Computer etc.
? Avaliable pin number：2-16P
Recommend Products
Customization
Cusomization Available | ||
Wire Type | UL Wire, VDE Cable, Automotive Wires, Dran Chain Cable, Medical Cable,ect. | |
Wire Size | 2AWG-32AWG,0.01mm2-50mm2 are available | |
Wire cores | 1 Core~50 cores are available | |
Conductors | Bare Copper, Tinned copper, Silver Plated, Gold plated wire | |
Rate Temperature | 80℃,105℃,125℃,180℃,220℃,300℃(176°F-572°F) | |
Certification | UL,VDE, CE 3C or TUV Customize Special cables | |
Protection | Waterproof, Low Smoke Halogen-Free, Anti-UV cable, Acid and alkali-resistant cable are available. | |
Industries | Autmobiles, Electronics, Machines, Lighting, New energy | |
