Key attributes
Industry-specific attributes
Application
electronic equipment
Conductor Material
Tinned copper
Conductor Type
Other
Insulation Material
FeP
Rated voltage
300V
Other attributes
Place of Origin
Guangdong, China
Brand Name
XIN YING
Model Number
UL 1332
Type
FEP Fluoroplastics wire
Temperature
-100°C to +200°C / 150°C
Gauge
30-10 AWG
Certification
UL758,UL1581,VW-1
Length
610 M / Roll
Packaging and delivery
Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
0.500 kg
Show more
Products Description

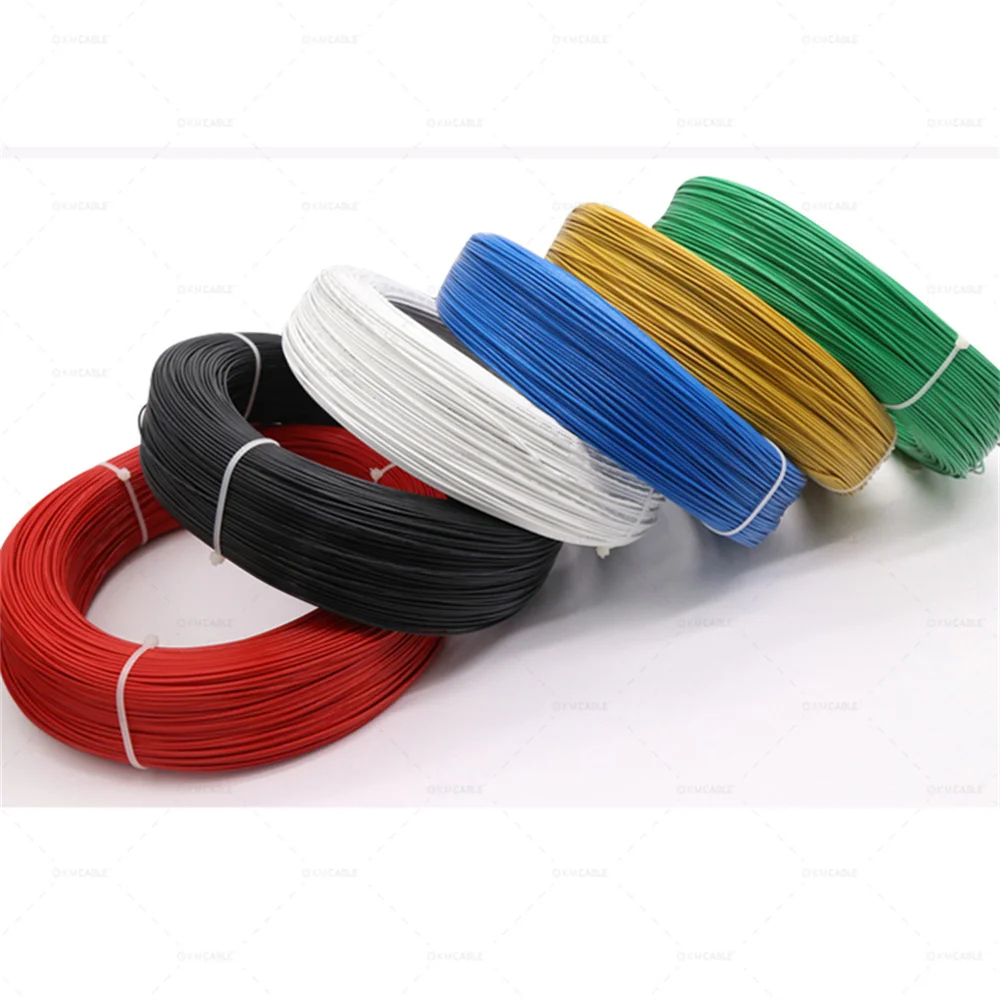

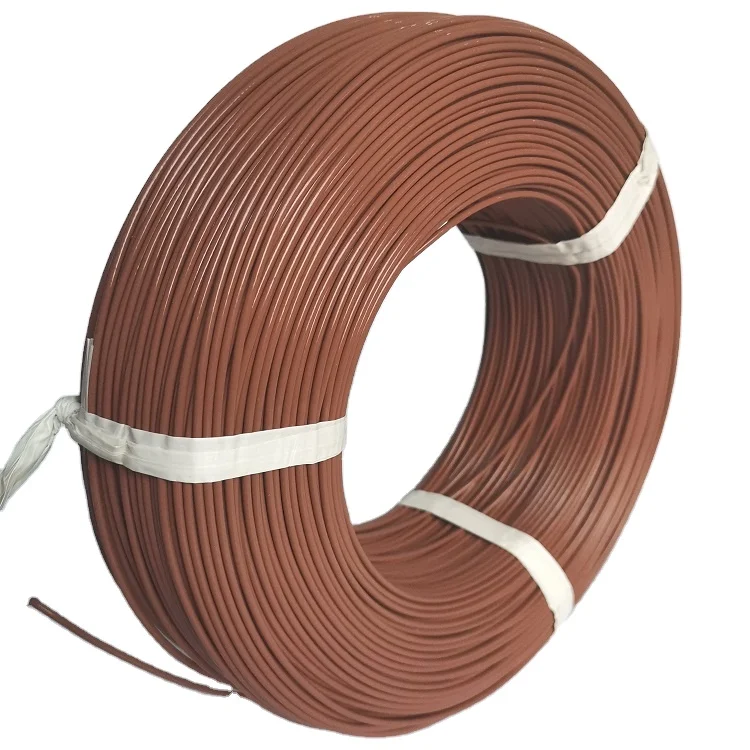

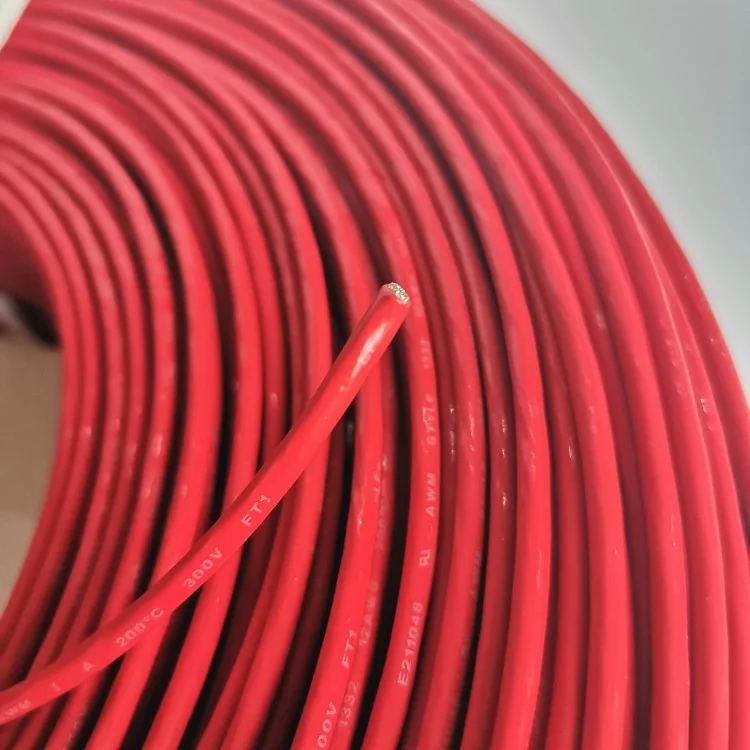

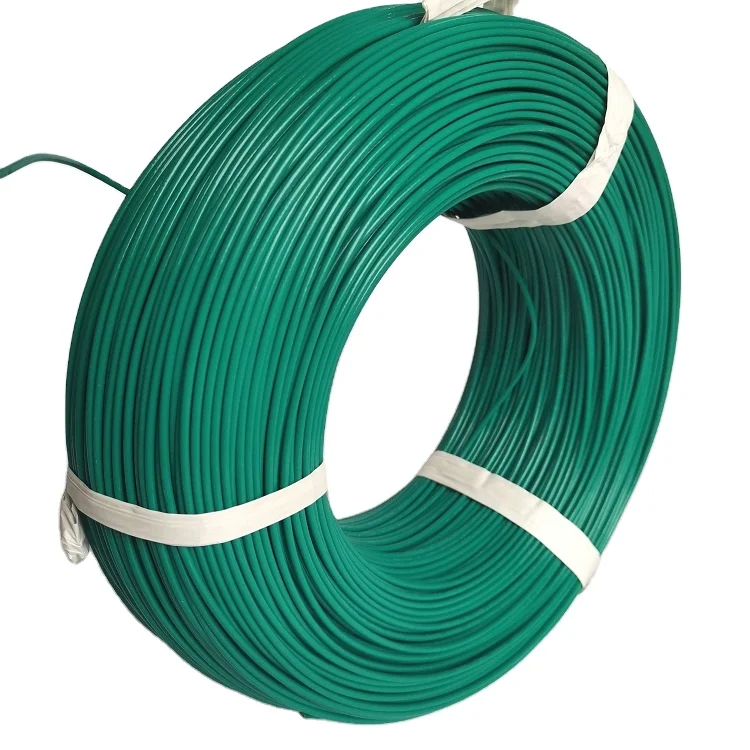

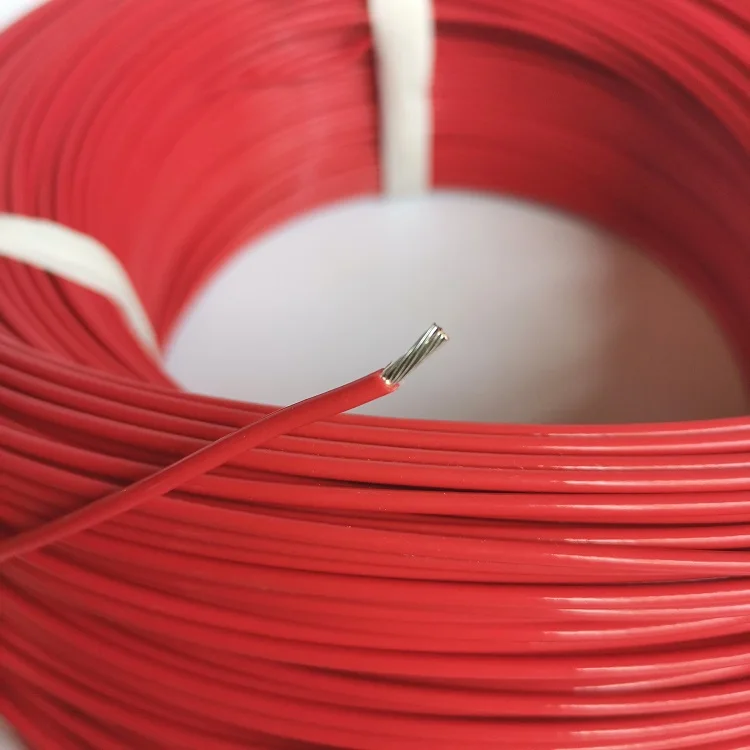

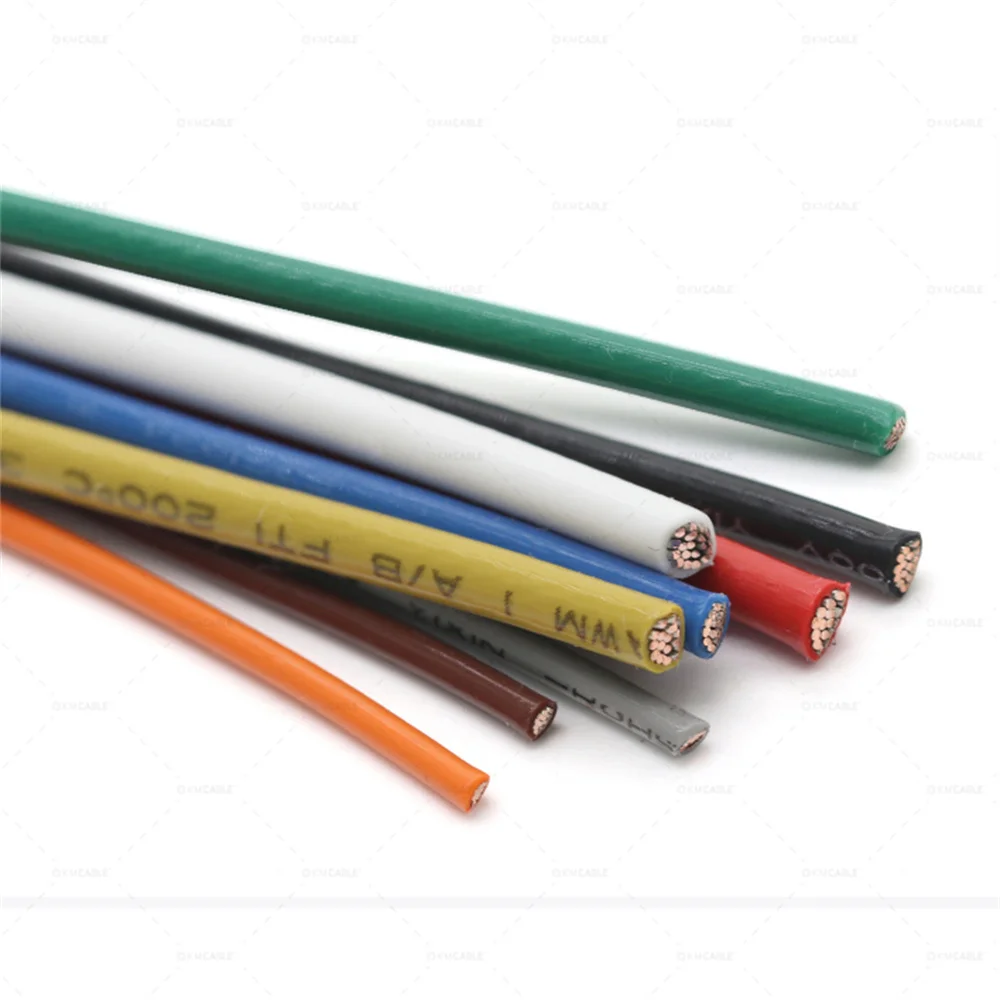

UL 1332 FEP Fluoroplastics wire Fep Wire High Temperature 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24 / 26 / 28 / 30 AWG UL1332 FEP Insulated Wire
?Rating Voltage: 300V
?Temperature range:-100'c to +200°C/150°C
?Conductor: 30 to 10AWG, Tinned copper
?insulation:FEP
?0.D.Allowance:±0.10mm
?Certification： UL758,UL1581,VW-1
?Characteristic:High temperature resistance,low temperature resistance anti-acid, anti-oil,antisepsisand moisture
?Application： Household appliance,lllumination,Lighting,electric machines,tempurature sensor, Military Series,Metallurgy Chemical
series Motor cars&Ships,Electrical installation
NOTE: Various Options to SELECT, welcome to inqure
Product Feature:
?Temperature range:-100'c to +200°C/150°C
?Conductor: 30 to 10AWG, Tinned copper
?insulation:FEP
?0.D.Allowance:±0.10mm
?Certification： UL758,UL1581,VW-1
?Characteristic:High temperature resistance,low temperature resistance anti-acid, anti-oil,antisepsisand moisture
?Application： Household appliance,lllumination,Lighting,electric machines,tempurature sensor, Military Series,Metallurgy Chemical
series Motor cars&Ships,Electrical installation
Recommend Products
Customization
Cusomization Available | ||
Wire Type | UL Wire, VDE Cable, Automotive Wires, Dran Chain Cable, Medical Cable,ect. | |
Wire Size | 2AWG-32AWG,0.01mm2-50mm2 are available | |
Wire cores | 1 Core~50 cores are available | |
Conductors | Bare Copper, Tinned copper, Silver Plated, Gold plated wire | |
Rate Temperature | 80℃,105℃,125℃,180℃,220℃,300℃(176°F-572°F) | |
Certification | UL,VDE, CE 3C or TUV Customize Special cables | |
Protection | Waterproof, Low Smoke Halogen-Free, Anti-UV cable, Acid and alkali-resistant cable are available. | |
Industries | Autmobiles, Electronics, Machines, Lighting, New energy | |
