Key attributes
Industry-specific attributes
Application
Automotive
Other attributes
Place of Origin
Guangdong, China
Brand Name
XINYING
Model Number
SAE to O Ring Terminal Harness
Jacket Material
PVC
Conductor Material
copper core
Insulation Material
pvc
Type
Battery Charging Cable
Application
Automotive
Product name
SAE to O Ring Terminal Harness
Gauge
10 AWG or customized
Size
2FT / 6 FT or customized
O Terminal

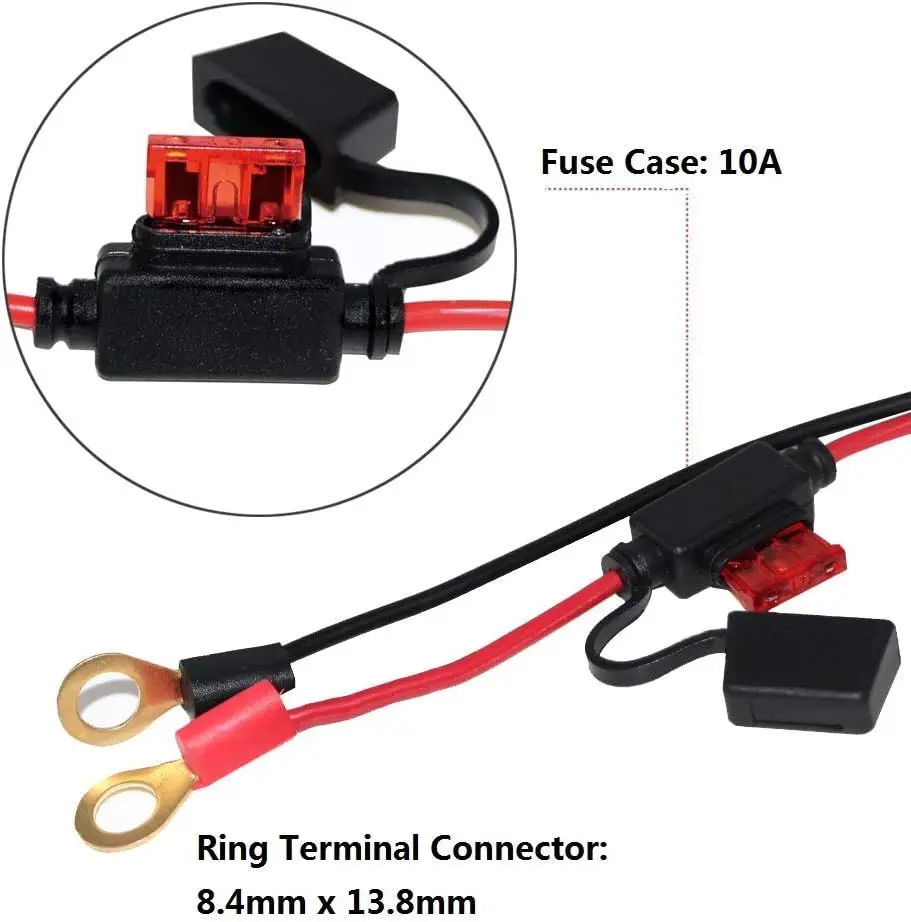

8.4 x 13.8 R Type, Brass
Fuse
10A or others
Sample
Available
Packaging and delivery
Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
0.300 kg
Show more
Products Description

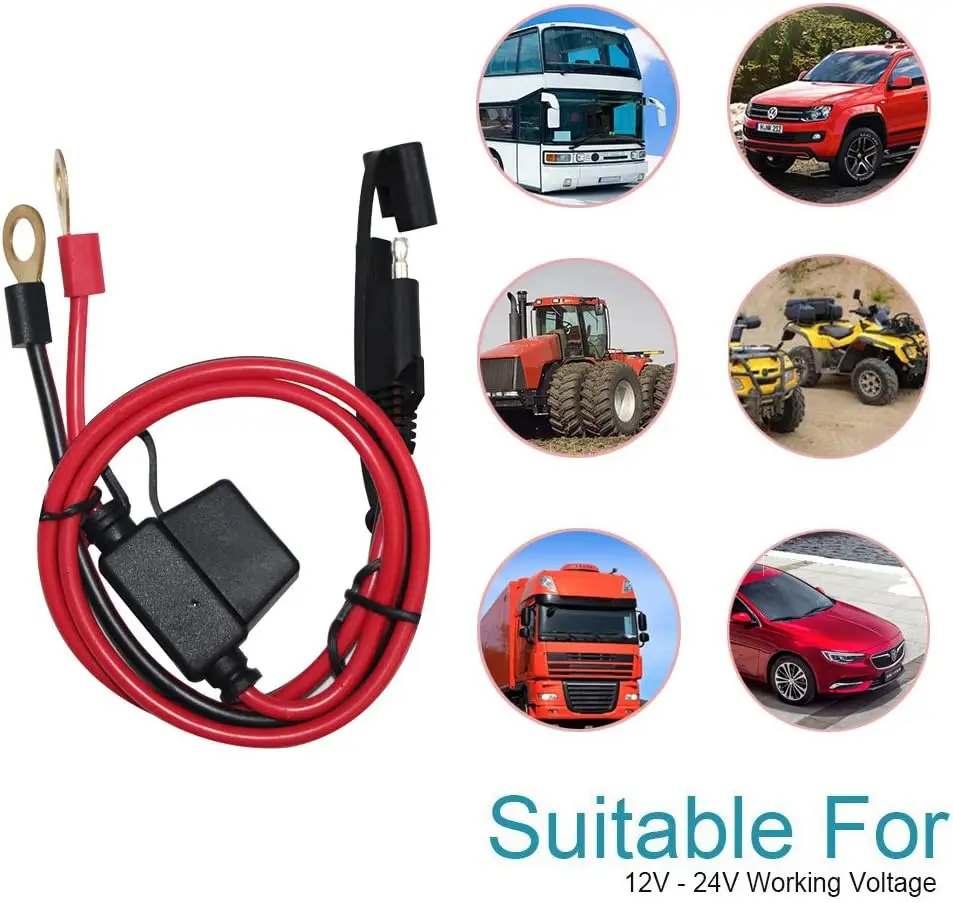

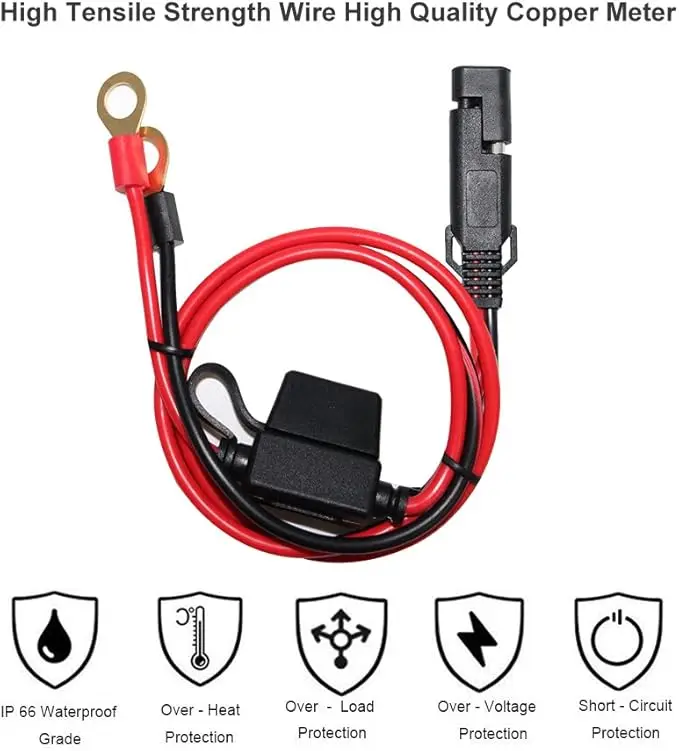

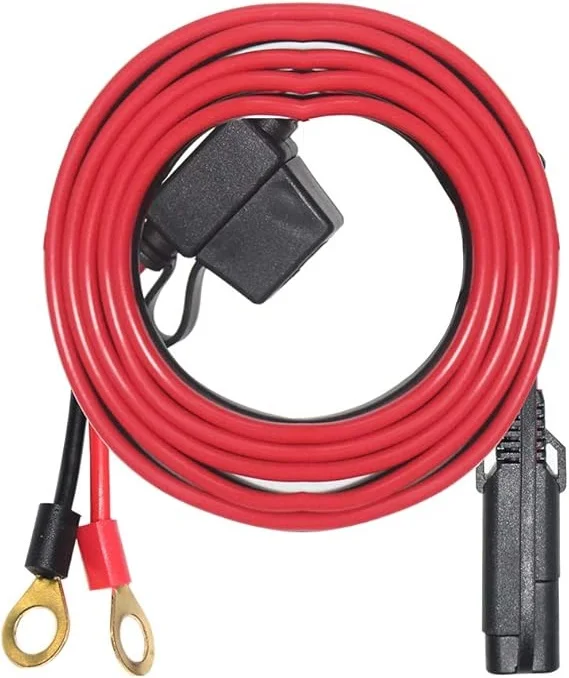

SAE to O Ring Terminal Harness Quick Connect/Disconnect Assembly
NOTE: Various Options, welcome to inqure
Product Feature:

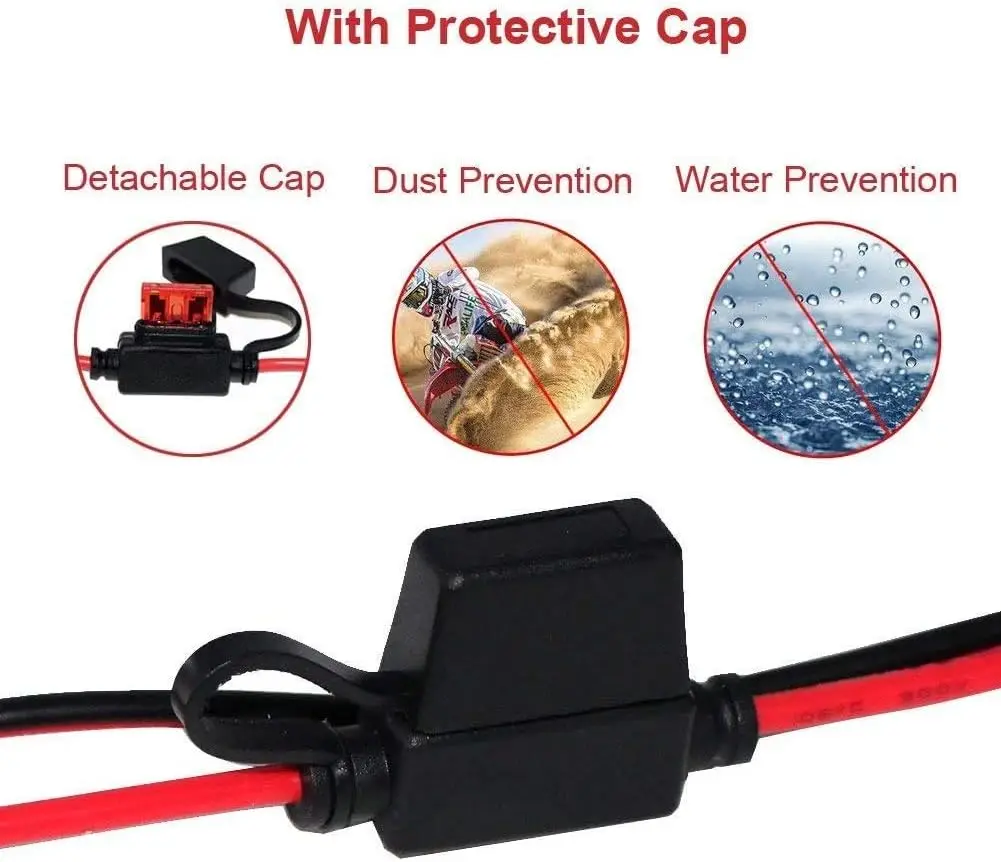

SAE To Ring Terminal: SPT-2, 10AWG, Length: 2ft/6ft. Designed for extending car or motorcycle battery charging terminals, keeping it trickle charged saves the battery.With 10A fuse(or others), heat and corrosion resistant that well works at wide voltage range of DC 12-24V, great for most vehicle.Funtion: You can not only directly powered by the existing SAE outlet of your motorcycle but also get power from the battery by connecting to the ring-terminal extension cable.With Weatherproof Cover Design: Easily slapped on to ensure the sae port water resistant and dustproof, effectively enhance its lifespan.Recommend Products
Customization
Cusomization Available | ||
Wire Type | UL Wire, VDE Cable, Automotive Wires, Dran Chain Cable, Medical Cable,ect. | |
Wire Size | 2AWG-32AWG,0.01mm2-50mm2 are available | |
Wire cores | 1 Core~50 cores are available | |
Conductors | Bare Copper, Tinned copper, Silver Plated, Gold plated wire | |
Rate Temperature | 80℃,105℃,125℃,180℃,220℃,300℃(176°F-572°F) | |
Certification | UL,VDE, CE 3C or TUV Customize Special cables | |
Protection | Waterproof, Low Smoke Halogen-Free, Anti-UV cable, Acid and alkali-resistant cable are available. | |
Industries | Autmobiles, Electronics, Machines, Lighting, New energy | |
