Key attributes
Industry-specific attributes
Application
Electronic, PCB, Automobile, Machines, COMPUTER, Home Appliance, Other
Other attributes
Place of Origin
Guangdong, China
Connector Type
Adapter
Rated Voltage
2KV / 10mA
Brand Name
XINYING
Model Number
XY-FLAT-2.54MM-001
Jacket Material
pvc
Conductor Material
pure copper
Length
Customizable
Insulation Material
pvc
Operating Temperature
-40°C to +105°C
Connector type
IDC 2.54MM Pitch
Packaging and delivery
Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
0.100 kg
Show more
Product Description
NOTE:
Various Options to CUSTOMIZE, welcome to inquire
Description:
Gray Ribbon Cable Pitch: PH: 1.27MM
Gray Ribbon Cable Specification: 2651 28AWG
Copper Wire Structure Material: Pre-plated and twisted
Copper Core Conductor: 7/0.12MM (7 strands of copper wire)
Conductor Diameter: 0.12 ± 0.005mm
Conductor Elongation: 18% or higher
Conductor Cross-Sectional Area: 0.36mm²
Conductor Stranding Pitch: 10.7mm or less
Insulation Thickness: Minimum 0.10mm, average 0.23mm
Wire Diameter: 0.9 ± 0.05mm
Insulation Elongation: 100.00%
Insulation Tensile Strength: 1.066Kg/m² or higher
Spark Test: 3.0KV/0.15 SPC or higher
Withstand Voltage: 2KV, 10mA
Conductor Resistance: ≤ 237 ohms/RM or less
Insulation Resistance: ≥ 100M ohms/RM or higher
Capacitance: 40PF/M
Impedance: 100 ohms
Applications:
PS.
to FAST quotation: it would be greatly helpful if can provide Specs/Drawings/Sample
to FAST quotation: it would be greatly helpful if can provide Specs/Drawings/Sample
* the price listed is for the product and its spec below, pls feel free to contact us if other spec needed:

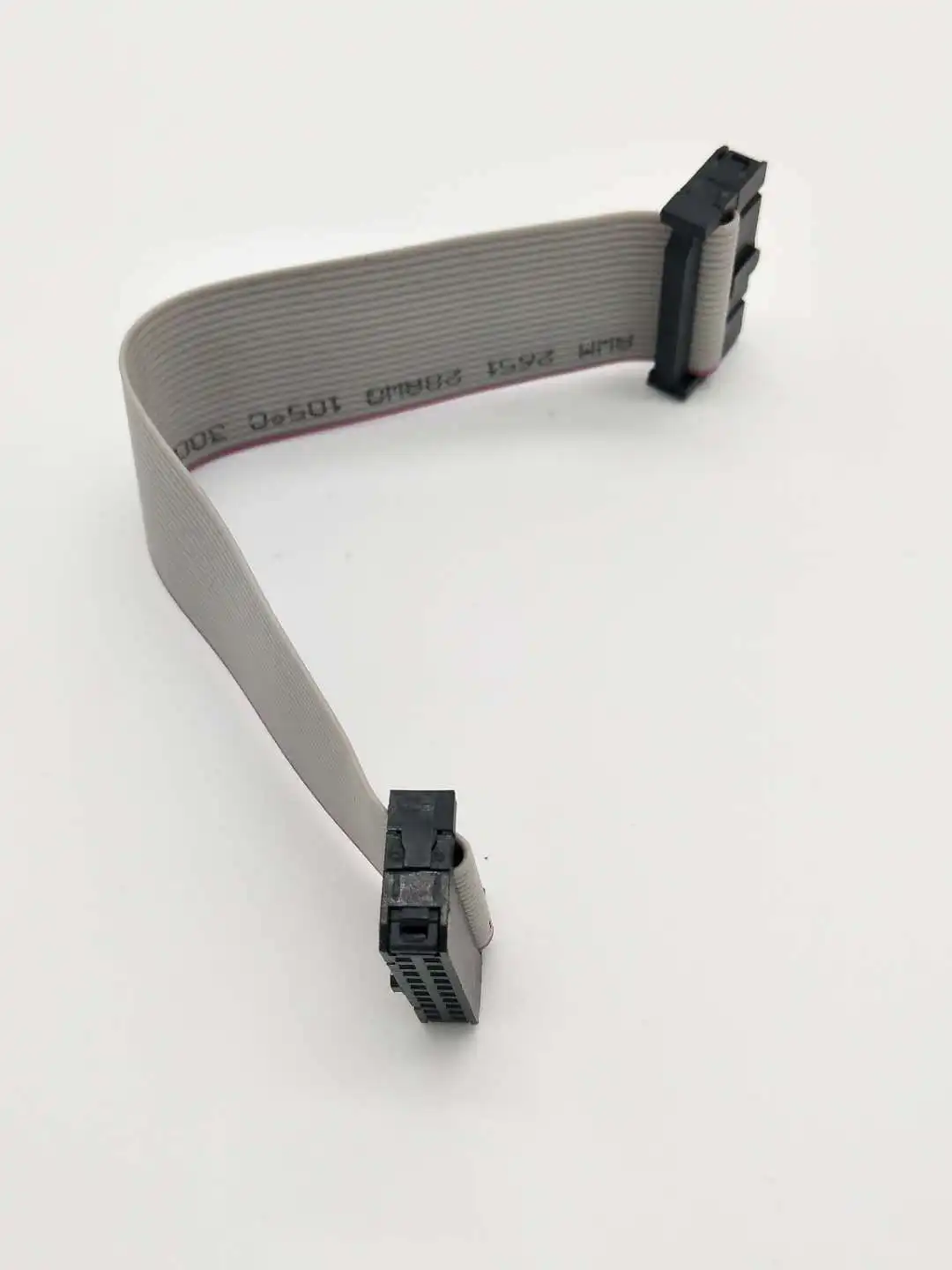

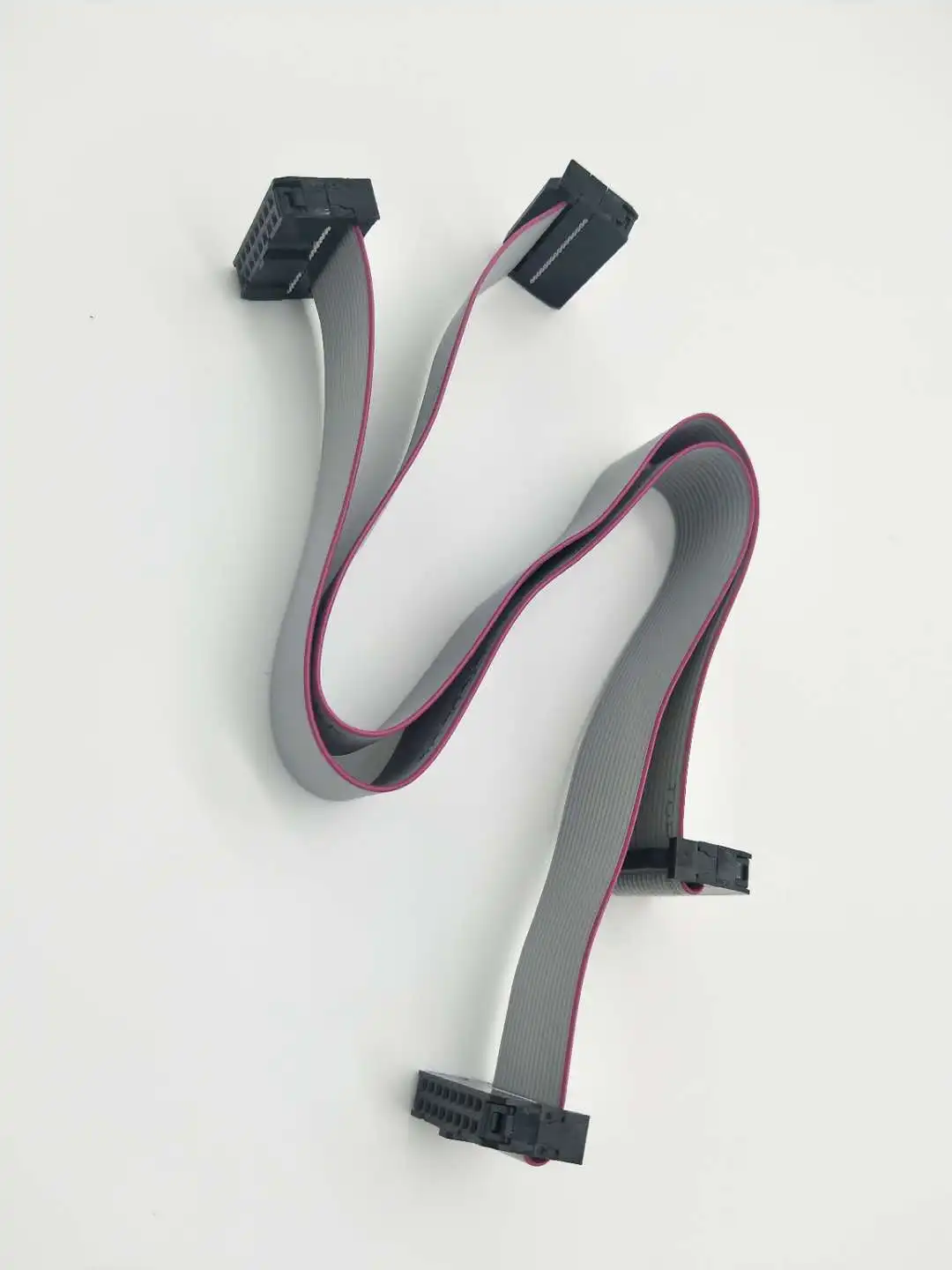

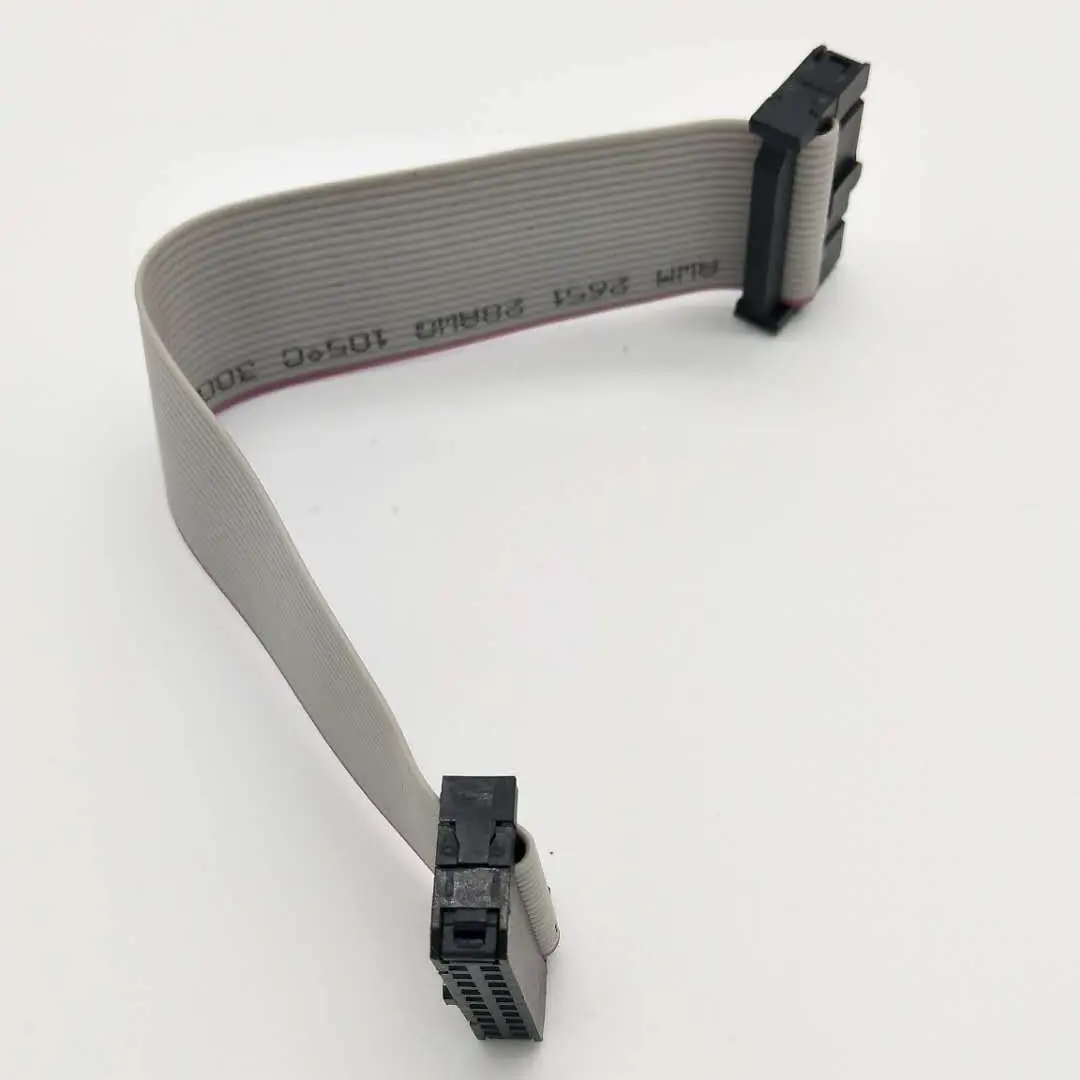

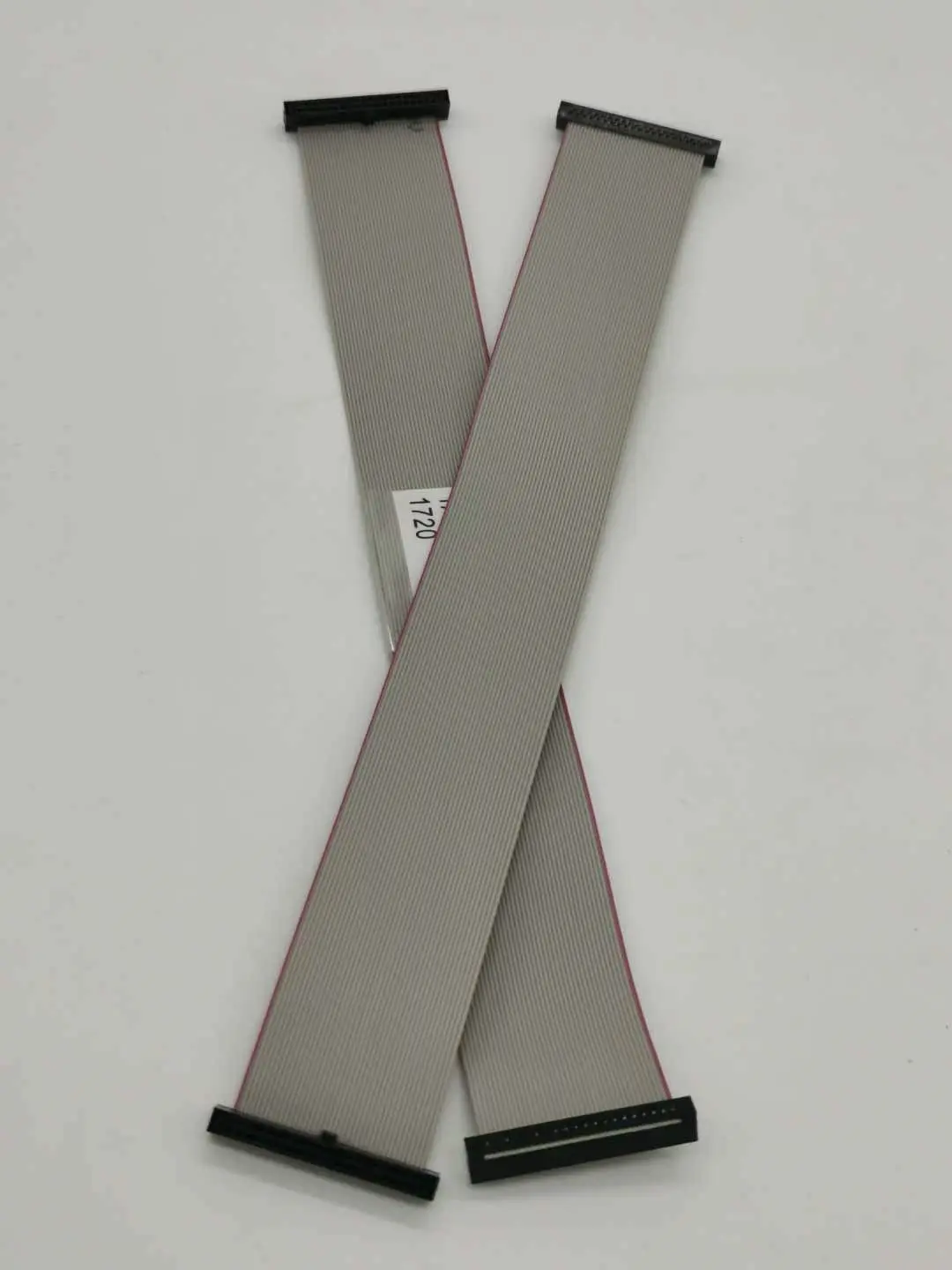

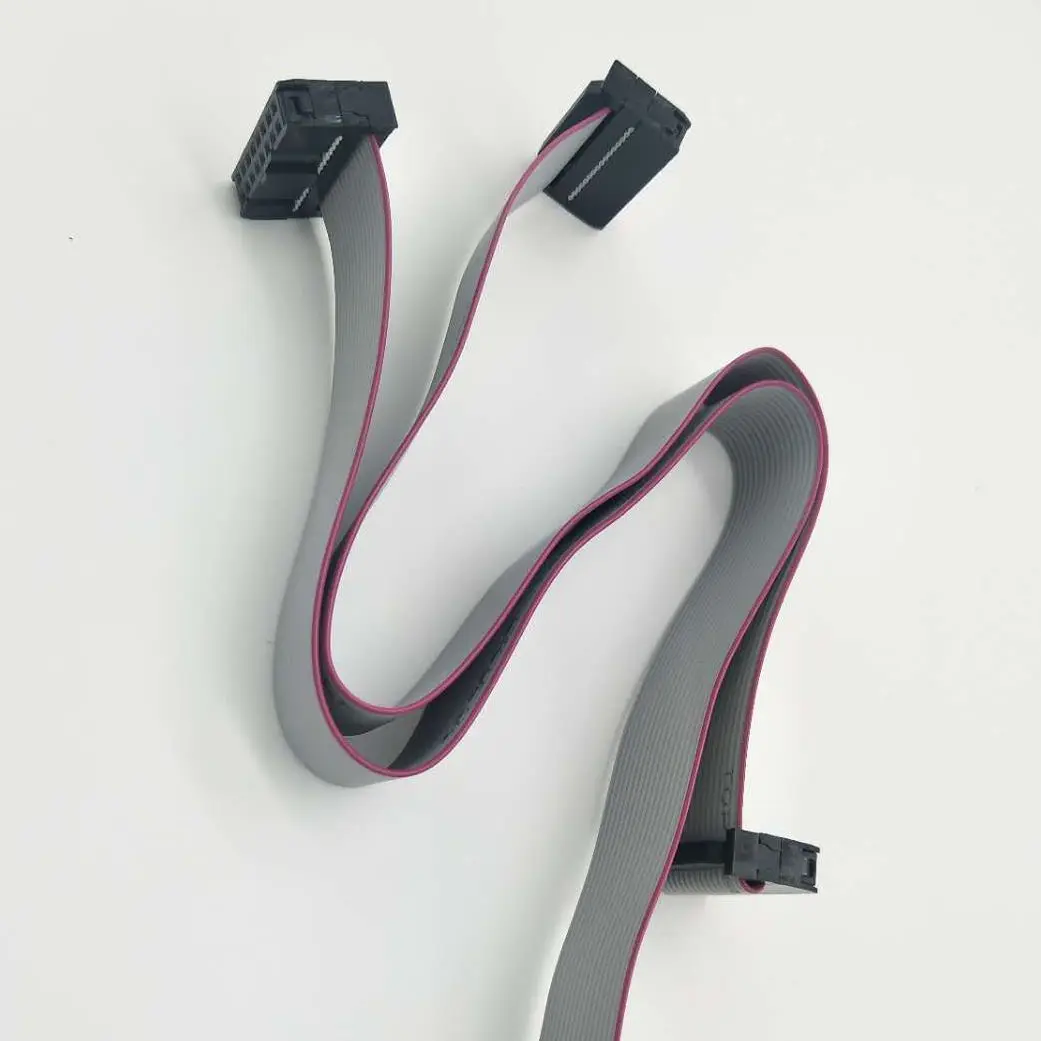

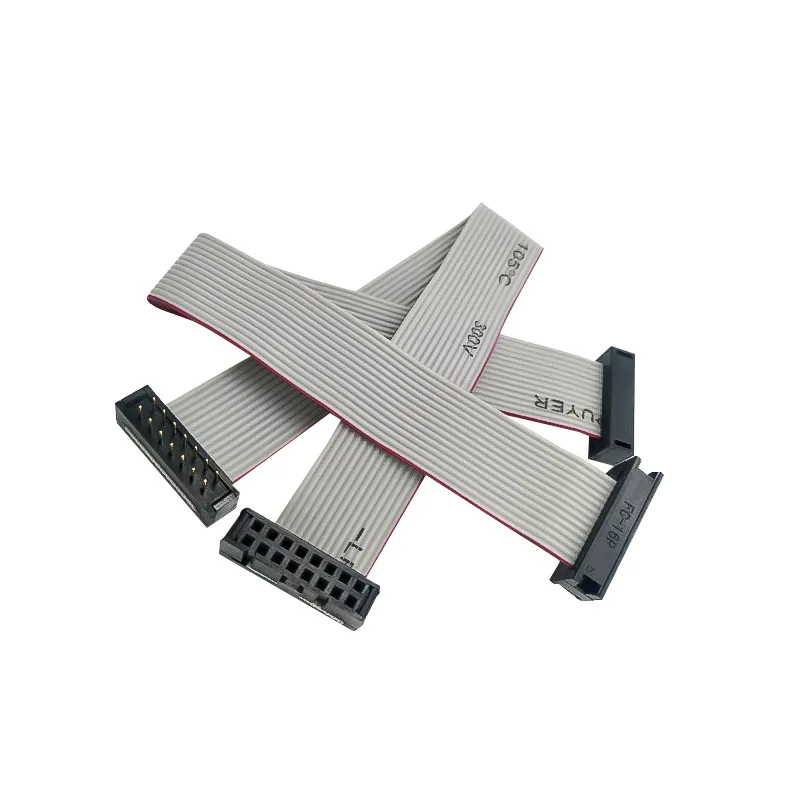

Product Name: 2.54MM IDC Finished Gray Ribbon Cable – 14PGray Ribbon Cable Pitch: PH: 1.27MM
Gray Ribbon Cable Specification: 2651 28AWG
Copper Wire Structure Material: Pre-plated and twisted
Copper Core Conductor: 7/0.12MM (7 strands of copper wire)
Conductor Diameter: 0.12 ± 0.005mm
Conductor Elongation: 18% or higher
Conductor Cross-Sectional Area: 0.36mm²
Conductor Stranding Pitch: 10.7mm or less
Insulation Thickness: Minimum 0.10mm, average 0.23mm
Wire Diameter: 0.9 ± 0.05mm
Insulation Elongation: 100.00%
Insulation Tensile Strength: 1.066Kg/m² or higher
Spark Test: 3.0KV/0.15 SPC or higher
Withstand Voltage: 2KV, 10mA
Conductor Resistance: ≤ 237 ohms/RM or less
Insulation Resistance: ≥ 100M ohms/RM or higher
Capacitance: 40PF/M
Impedance: 100 ohms
Applications:
Suitable for various connectors and terminals used in computers, instruments, machines, electrical appliances,automotive systems, color TVs, air conditioners, LED displays, DVD players, VCD players, and more.
IN A NUTSHELL:
We support the customization of various wire harnesses, including adjustments to length, connector type, and functional needs, providing you with tailored solutions to ensure efficient and high-quality connections, helping drive your business forward.
Spots
Customization Cases
Application
Recommend Products
Customization
Cusomization Available | ||
Wire Type | UL Wire, VDE Cable, Automotive Wires, Dran Chain Cable, Medical Cable,ect. | |
Wire Size | 2AWG-32AWG,0.01mm2-50mm2 are available | |
Wire cores | 1 Core~50 cores are available | |
Conductors | Bare Copper, Tinned copper, Silver Plated, Gold plated wire | |
Rate Temperature | 80℃,105℃,125℃,180℃,220℃,300℃(176°F-572°F) | |
Certification | UL,VDE, CE 3C or TUV Customize Special cables | |
Protection | Waterproof, Low Smoke Halogen-Free, Anti-UV cable, Acid and alkali-resistant cable are available. | |
Industries | Autmobiles, Electronics, Machines, Lighting, New energy | |
