Key attributes
Industry-specific attributes
Type
DT Connectors
Application
LED Light
Gender
MALE/FEMALE
Other attributes
Place of Origin
Guangdong, China
Brand Name
XIN YING
Model Number
DT-2PIN
Housing Material
PA66
Product name
2 Pin DT Connectors
Connector
DT connectors
Gauge
16 AWG
Max Working Current
15A
Sample
Acceptable
Waterproof Level
lP67
Voltage
12V
Packaging and delivery
Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
0.160 kg
Show more
Products Description

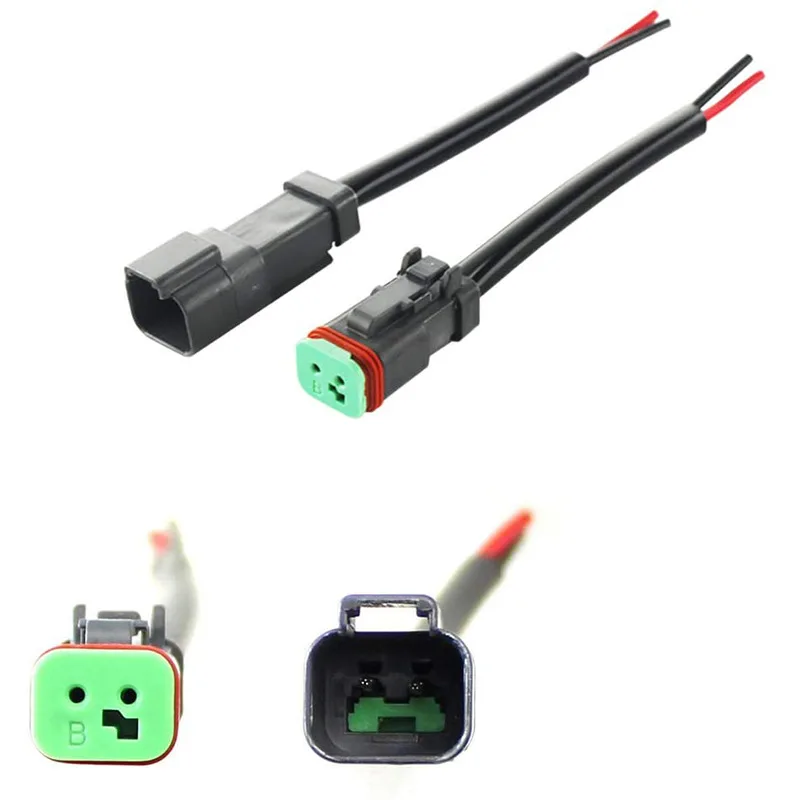

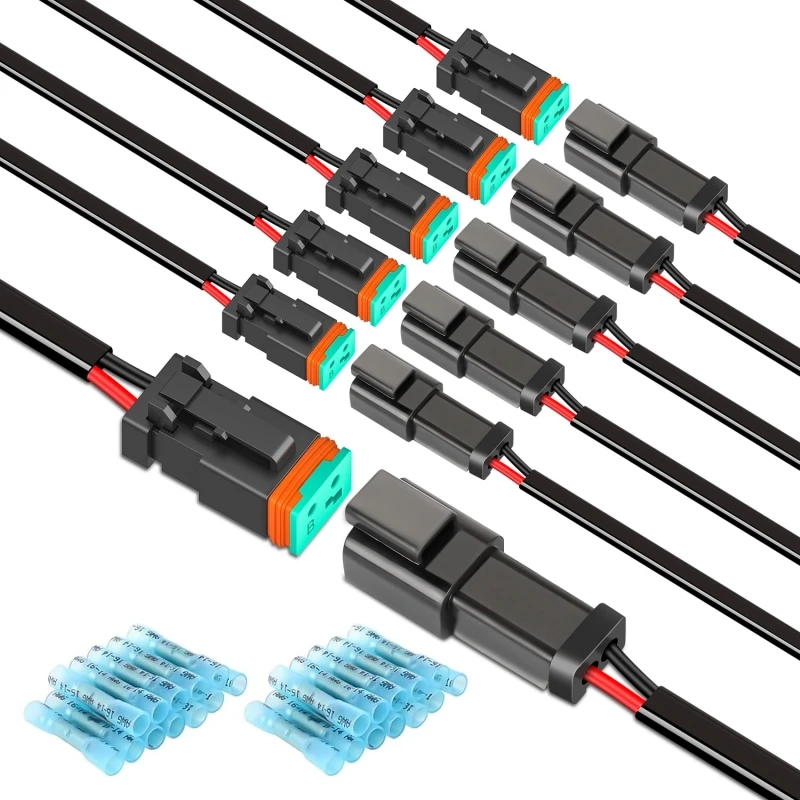

2 Pin DT Connectors Male and Female Electrical Connector Waterproof Plug and Play Shrink Butt Terminals for LED Work Light Bar

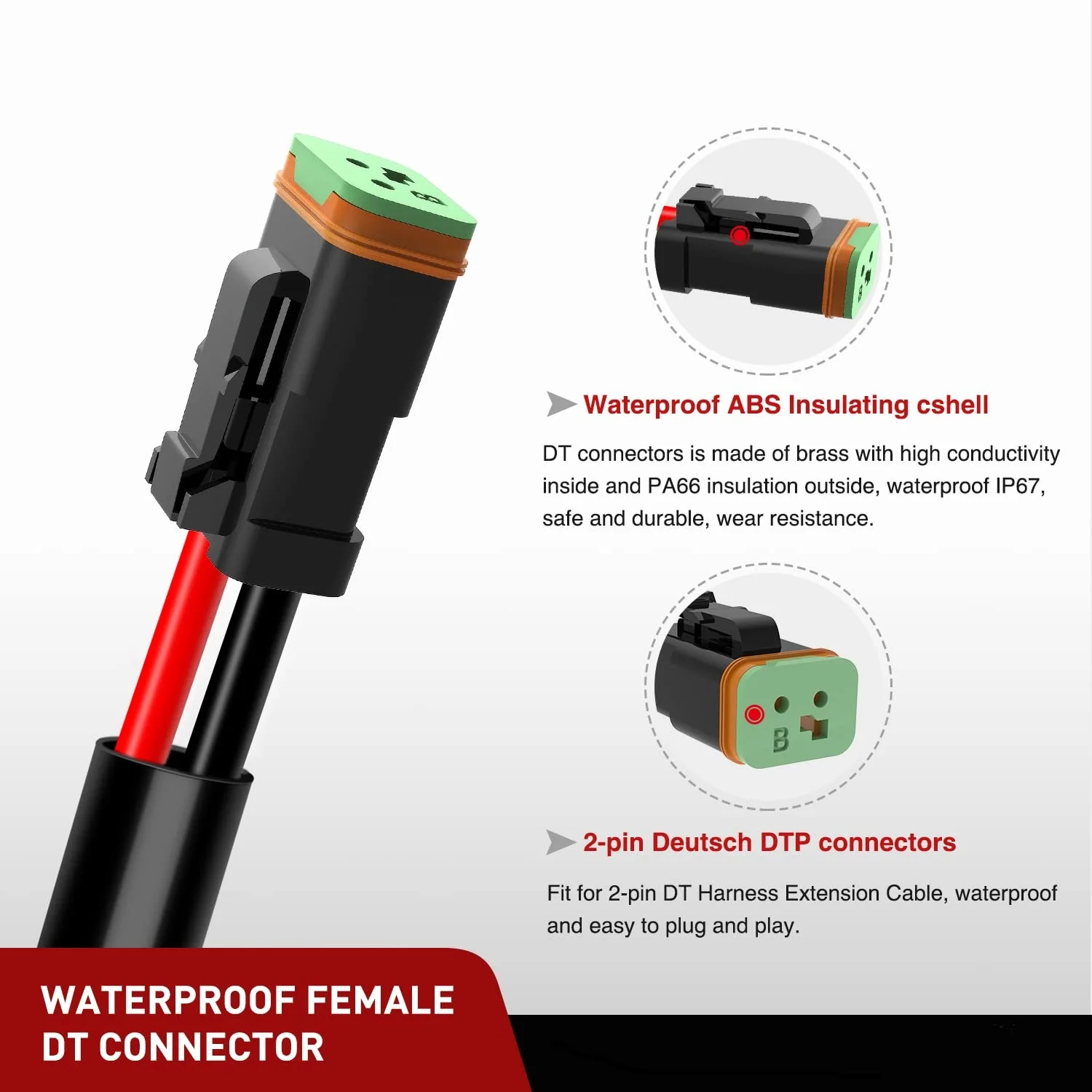

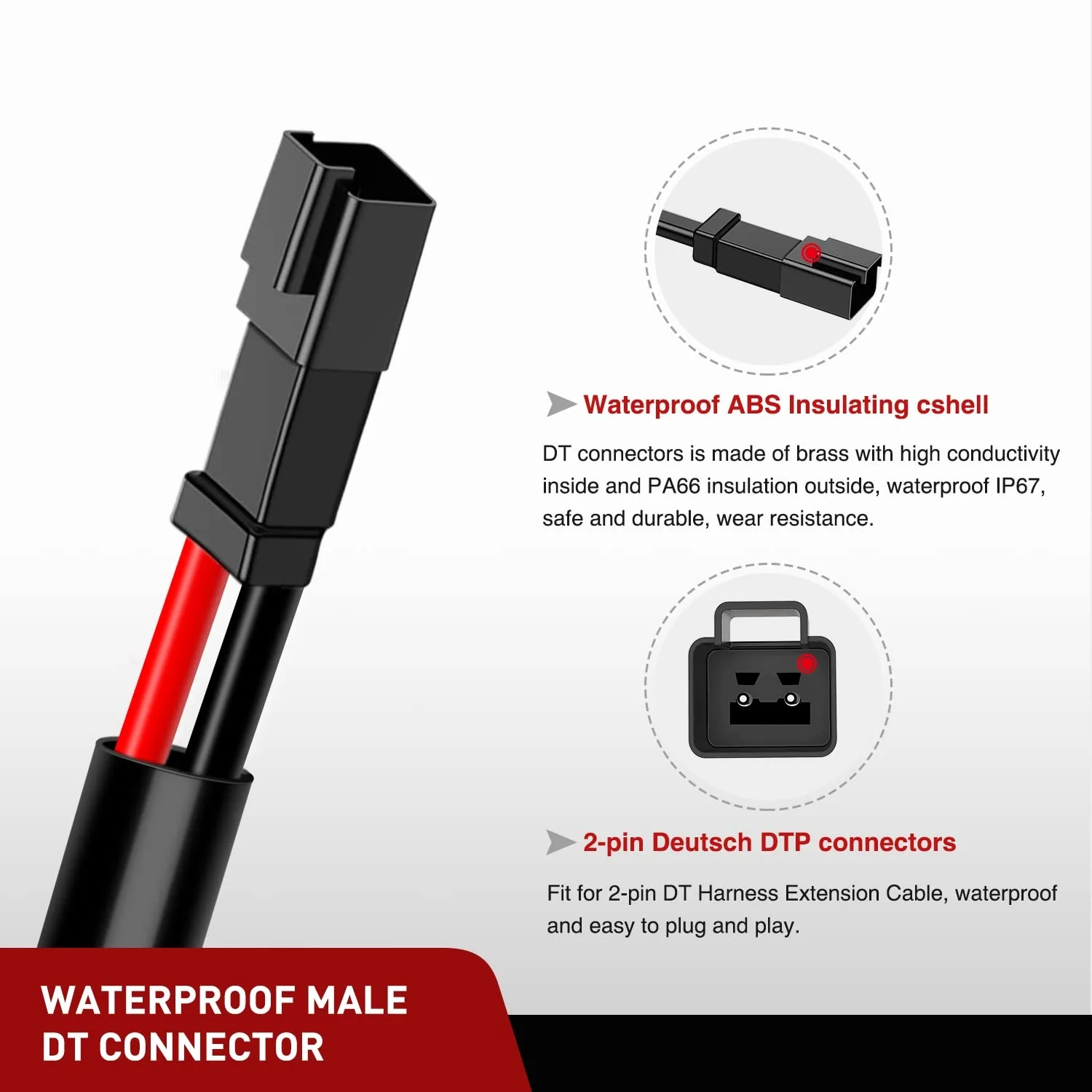

High Quality : made of PA66 nylon and 16 AWG tinned copper wire, which has a high certain thermo stability, waterproof, dustproof ,durable wear-resisting and safe. Wide Applications: The 2pin DT Connectors are widely used for Motorcycles, Scooters, Cars, Trucks, Quad bikes, Trikes, Caravans, Marine,Boats etc. Great for connecting LED light bar, LED strips, LED wall-washers, LED underground light, LED belt light, curtain light, twinkle light and so on.
NOTE: Various Options to customize, welcome to inqure
Product Feature:
Recommend Products
Customization
Cusomization Available | ||
Wire Type | UL Wire, VDE Cable, Automotive Wires, Dran Chain Cable, Medical Cable,ect. | |
Wire Size | 2AWG-32AWG,0.01mm2-50mm2 are available | |
Wire cores | 1 Core~50 cores are available | |
Conductors | Bare Copper, Tinned copper, Silver Plated, Gold plated wire | |
Rate Temperature | 80℃,105℃,125℃,180℃,220℃,300℃(176°F-572°F) | |
Certification | UL,VDE, CE 3C or TUV Customize Special cables | |
Protection | Waterproof, Low Smoke Halogen-Free, Anti-UV cable, Acid and alkali-resistant cable are available. | |
Industries | Autmobiles, Electronics, Machines, Lighting, New energy | |
